Don't Forget!

Status Monitor and Alerting System

How many times have you driven away from a remote site and wondered if you forgot to switch the local-remote switch or shut the door on the aux transmitter, or some other task that needed to be done before leaving? Now there is the "Don't Forget!", a system that will monitor these tasks and remind you if you forget selected items before you leave. The "Don't Forget!" features 6 inputs that are jumper selectable for either N.O. or N.C. conditions, 3 "Opto-Probe" LED and visible light sensor inputs, LED's for each monitored channel that change from green to red and an audible sounder sounds off when a fault is detected, flashing and steady outputs to drive external LED's and sounders. With all of this reminding you there is no way you can leave the site and forget those tasks. The sounder can be disabled for equipment maintenance, (a LED turns from green to red when this is done to remind you that it has been disabled), and may be set to a steady or beeping alert. One "Opto-Probe" is included that may be used to monitor a selected LED or light source for applications such as Local-Remote switches, over modulation LED's or any other light source desired. Magnetic contact switches are also included for doors or panels that must be closed. The "Don't Forget!" also makes an excellent fault alerting system and is easily interfaced with your remote control.

Only $165.00 + shipping

Shipping Weight: 2 Lb. (approximate)

Supplied Materials:

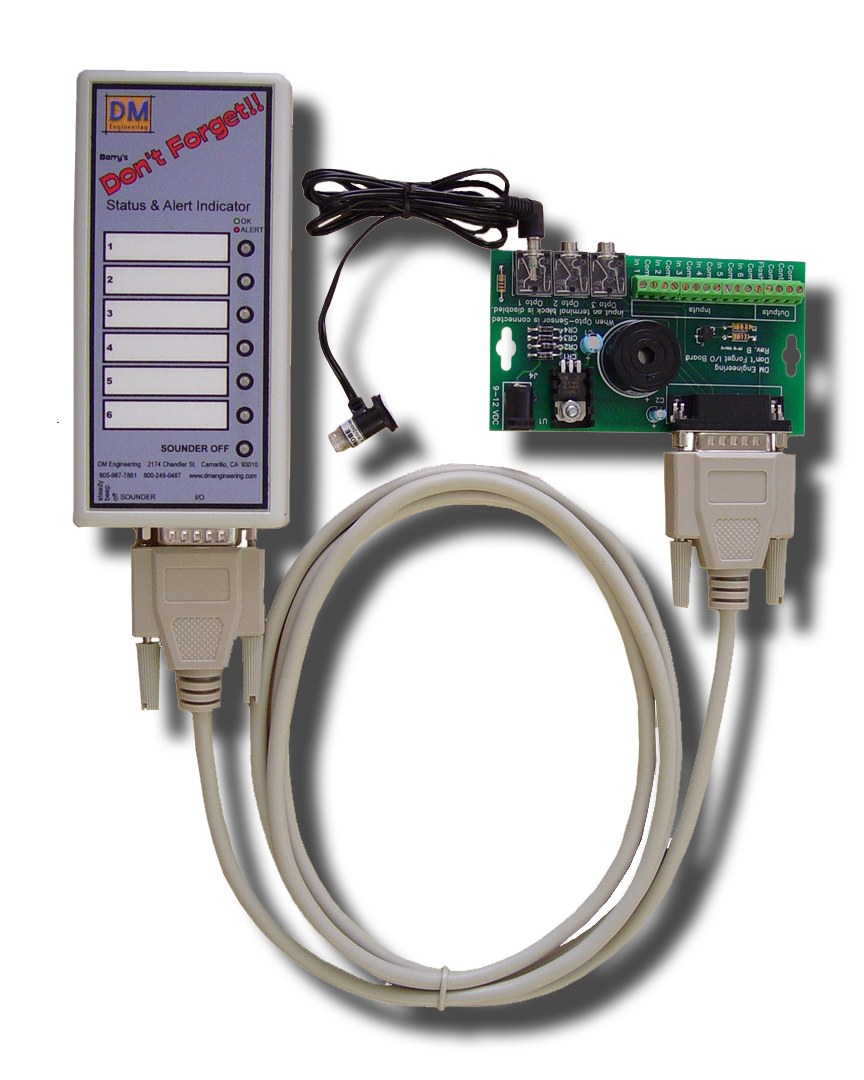

Don't Forget! Indicator Module
I/O Breakout Board with audible sounder
"Opto-Probe" LED and visible light detector with 3' connecting cable
Power Supply module
2 sets of magnetic contact switches
6' DB15 connector cable
Mounting screws
Hook and loop fastener materials
Alcohol swab
Cable anchors for Opto-Probe
User guide

Additional "Opto-Probe" sensors, magnetic contact switches and extension cables are available at additional cost listed below: (Shipping charges not included)

Opto-Probe Sensor.....$47.50
6' DB15 Extension Cable.....$6.75
10' DB15 Extension Cable.....$9.95
20' DB15 Extension Cable.....$18.50
6' Opto-Probe Extension Cable.....$4.90
12' Opto-Probe Extension Cable.....$7.85
Magnetic Contact Switch (one set).....$3.75

Click Here For User Guide
