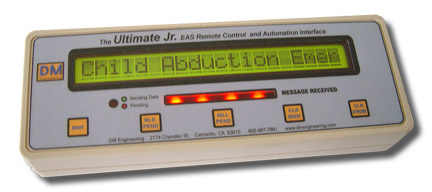

The "ULTIMATE Jr. " REMOTE CONTROL, LCD SIGN AND AUTOMATION INTERFACE FOR THE SAGE-ENDEC MODEL SE1822 and 3644 DIGITAL E.A.S. ENCODER/DECODER

The “Ultimate Jr.” EAS remote Control and Automation Interface for the Sage-Endec SE1822 and 3644 Digital E.A.S. encoder/decoder. This little beauty has most of the features you could ask for.

• Large BACKLIT LCD SCROLLING DISPLAY showing date, time, and alert details, just like the LED sign display.

• ATTENTION GETTING STROBE to catch your eye when an alert is pending or has been sent, and the color is tailored to the severity of the alert.

• An EXTRA SMALL FOOTPRINT (8.5 X 3 X 1.4) for crowded countertops. Mount it on the console or stick it up on the wall or studio window. Supplied with hook and loop fasteners so you can stick it up just about anywhere. Single Cat 5 connection, no power input required at this end.

• DEDICATED PUSHBUTTONS to initiate RWT, RELAY PENDING ALERT OR RMT, KILL PENDING ALERT, CLEAR STROBE AND CLEAR SIGN.

• An AUTOMATION INTERFACE that will allow contact closures from your automation or any normally open contact or switch to initiate an RWT.

• No menus to sort through (Note: Individual station control is not supported when the Endec is used in multistation mode)

• 2 software versions available.
1- Single button push for RWT and Pending Alert release. Endec relays RWT or Pending Alert 5-7 seconds after button push. This is due to Endec decoding time. (Version 1.4 & 2.0)
2- Double button push for RWT and Pending Alert release. First button push loads information into Endec. Second button push relays alert immediately. LED flashes showing "ready to relay" status. (Version 1.5 & 2.1)

Interface Module

....only $329.00 + shipping (Please specify software version when ordering.)

Specifications:

• Case Dimensions: 8.0" wide X 3.0" deep X 1.4" high
• Case Material and Color: plastic, bone grey
• LCD Display Dimensions: 6 1/16 X 5/8
• Character Size: .453" X .265"
• LCD Display: Yellow Backlight
• Connection Method: 50' Category 5e cable with RJ45 connectors, supplied
• DB9 interface modules with automation control screw terminal interface connections
• Sage-Endec Interface: Serial RS 232, 2 Endec ports required
• Power: External power supply (supplied), Input - 120VAC 50-60Hz, Output: 9VDC @ 500 ma (connected to the interface module at the endec end)
• Power supply cord length: 6ft.
• Mounting: Desktop or stick up with supplied hook and loop fasteners
• Operating temperature: 32 to 120F
• Humidity: 0 to 95% non-condensing
• Shipping Weight: approximately 4 lbs.
(Endec is a trademark of Sage Alerting Systems)
